The Corner Set is the ideal pallet for EDM cutting machines.

It can be used on the left or right side,
as well as at a 45° angle from the front.
Parts can be clamped in the Corner Set outside the
machine and then secured in the machine's reference
position using the stop bars (base bars).
The clamping lips are positioned at the zero plane
in their home position.

Dimensions:

Leg length 135 x 135 mm / Height = 22 mm

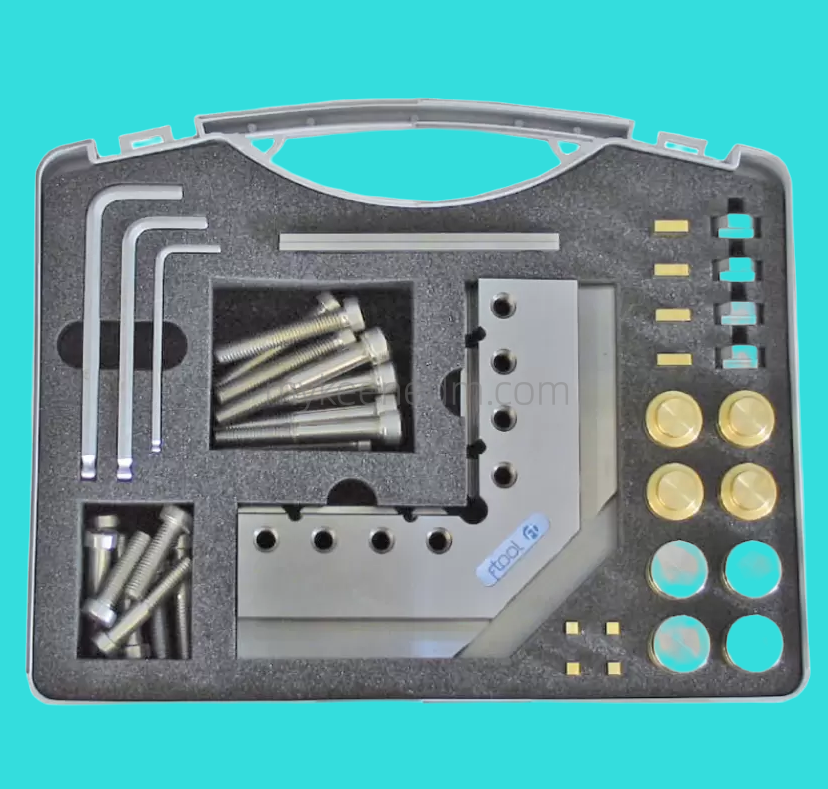

Included in the set:

- 1 x Corner Set

- 2 x FT 01070 Spacer Plates 100 x 29 x 3 mm

- Various screws, wrenches, clamps, and supports
