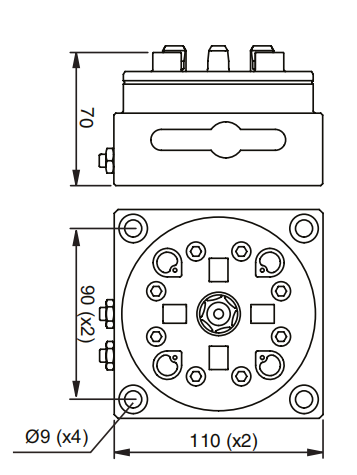

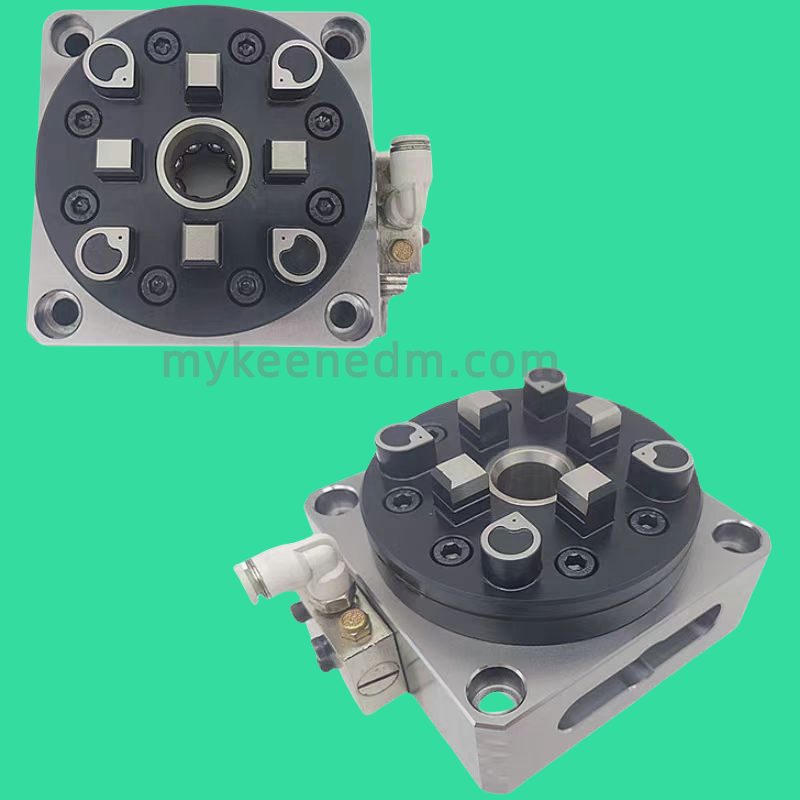

Chuck for mounting on the machine table with integral air unit.

For horizontal and vertical use.

• Fixed index positions 4x90°

• Required air pressure, pneumatic chuck – 6±1 bar

• References of cemented carbide

• Required drawbar 3R-605.1

• Air-blast cleaning of Z-references

• Turbo locking

• Weight 4.4 kg

CNC,EDM machine
